Wastewater Treatment

Turning Wastewater into Worth

Johkasou-SB

It is commonly applied in rural communities, tourist attractions, village homestays, highway service areas, schools, enterprises, and other distributed sewage treatment scenarios.

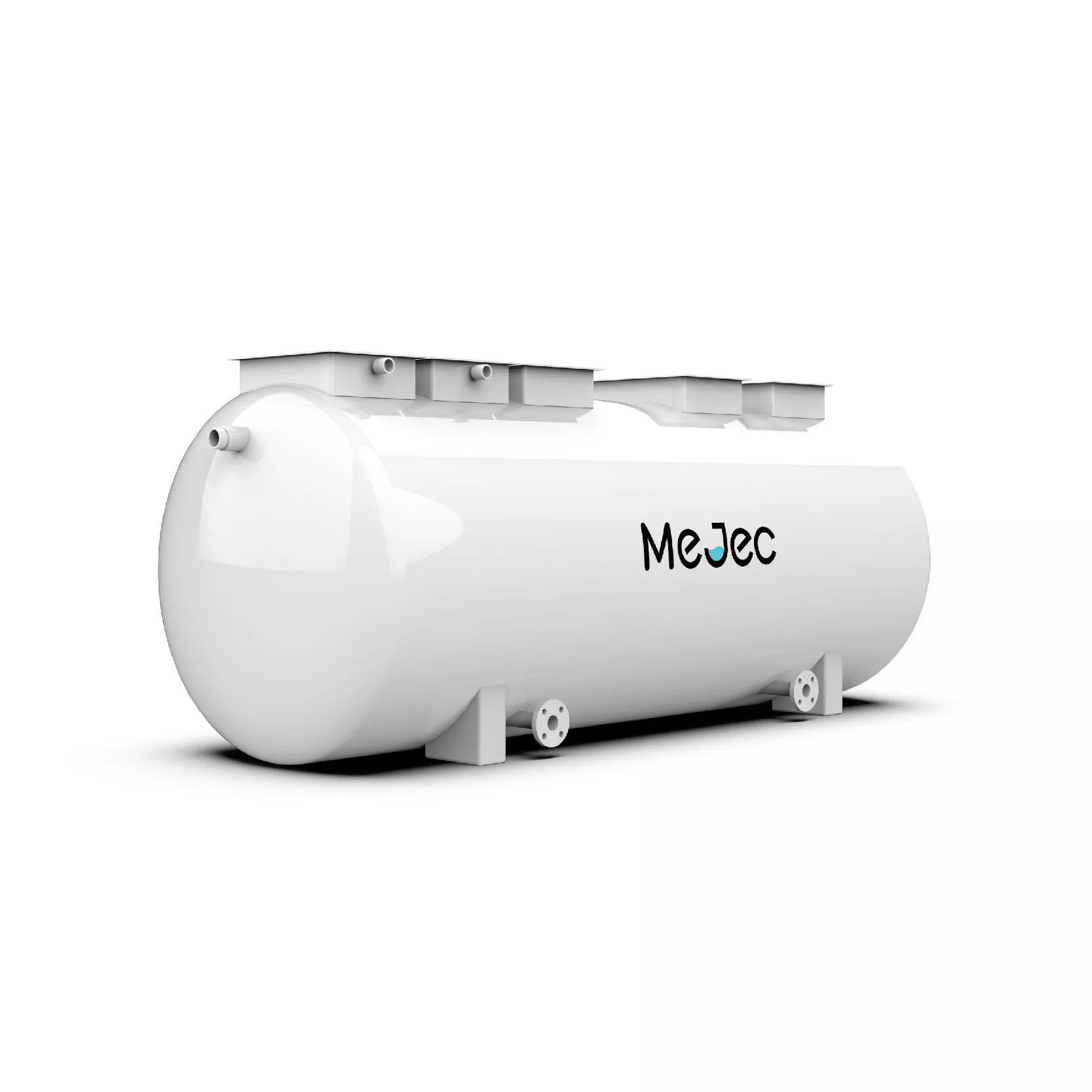

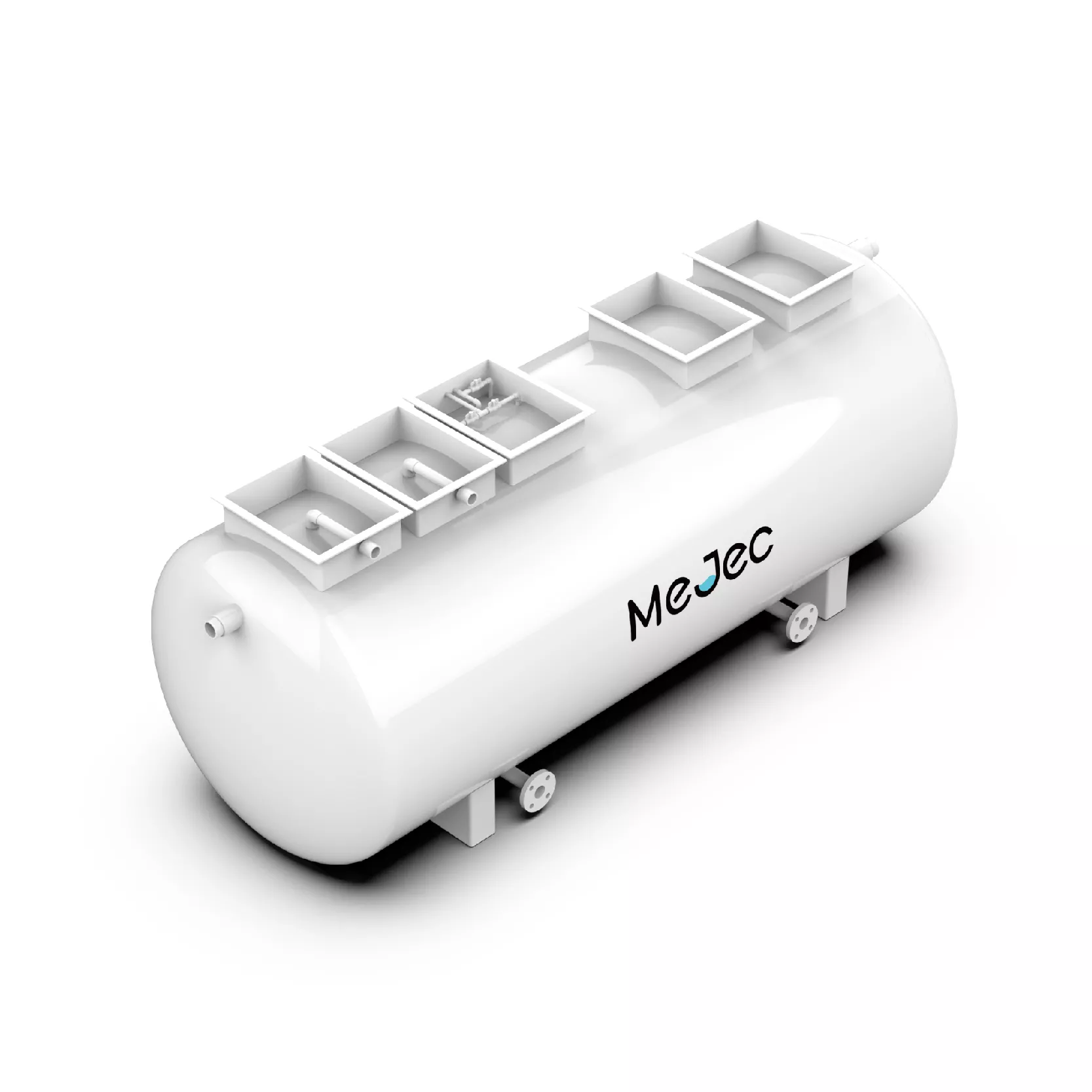

‌Large Capacity Integrated Sewage Treatment Plant

Product Patent Number : ‌ZL201621087851.5
Mejec-Johkasou-SB adopts an AAO + MBBR combined biological treatment process, offering a daily capacity of 5–100 m³ per unit. Designed as a fully integrated, ready-to-install system, it enables flexible configuration, fast deployment, and high operational reliability. The treated effluent remains consistently compliant with required discharge standards. Engineered for low-strength domestic wastewater, this solution fits a wide range of decentralized treatment needs. It is commonly applied in rural communities, tourist attractions, village homestays, highway service areas, schools, enterprises, and other distributed sewage treatment scenarios.

Space-Saving and Eco-Friendly

Low Noise and Odor, Minimal Impact

Corrosion-Resistant and Durable

Stable Operation with High Impact Tolerance

Automatic Operation and Easy Management

Product Specifications (Large Capacity)

Model Processing capacity
(m³/d)
Size
(m)
Weight
(t)
Installed power
(kw)
Operating power
(Kw*h/m³)
SB20 20 Φ2.2*5.3 3 0.75 1.74
SB30 30 Φ2.2*8 3.5 0.97 1.17
SB40 40 Φ2.2*10 4 1.984 0.89
SB50 50 Φ2.2*11.5 4.5 1.984 0.72
SB60 60 Φ2.2*8*2 7 1.91 1.17
SB80 80 Φ2.2*10*2 8 1.91 0.89
SB100 100 Φ2.2*11.5*2 9 2.44 0.72
Note: The above data is for reference only. The parameters and selection are subject to mutual confirmation and can be combined for use. Other non-standard tonnage can be customized.

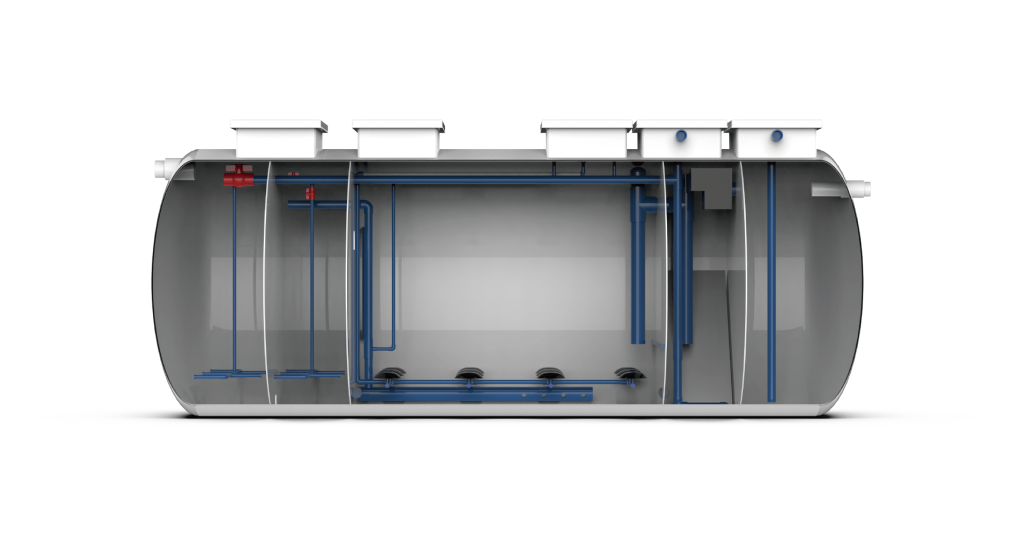

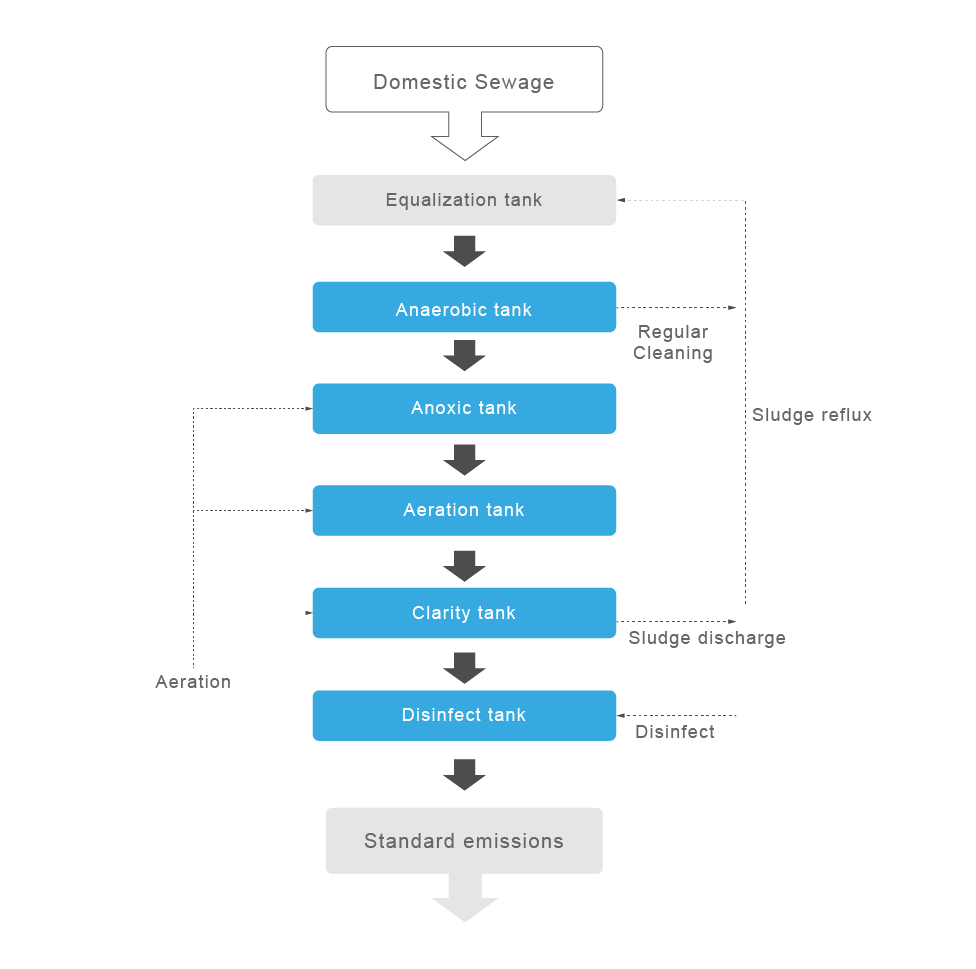

Designed for decentralized treatment of industrial or communal wastewater, this horizontal-tank system processes tens of tons of effluent daily through a continuous, enclosed flow. Wastewater first enters a primary zone for sedimentation and anaerobic digestion, then moves through an extended aerobic biological reactor where microorganisms break down organic matter and nutrients. Following secondary clarification within the tank, the treated water undergoes final disinfection, consistently meeting discharge or reuse standards. The fully automated, space-efficient horizontal design ensures reliable, large-capacity operation with minimal footprint and maintenance.

Solutions

FAQS

  • What makes the Mejec-Johkasou-SB suitable for decentralized rural sewage treatment?

    The Mejec-Johkasou-SB is specifically engineered for decentralized sewage treatment in areas like rural communities, tourist attractions, and village homestays. Its high degree of integration combines the AAO + MBBR combined biological treatment process into a single, compact unit. This allows for fast deployment and ground mounted installation without the need for extensive infrastructure, making it perfect for distributed locations where centralized sewage systems are not feasible.

  • Can the Mejec-Johkasou-SB operate with solar energy in remote locations?

    Yes, the Mejec-Johkasou-SB features advanced Solar energy integration technology. This capability allows the plant to operate efficiently in off-grid or remote areas, such as highway service areas or isolated tourist spots, where stable power supply might be a challenge. By utilizing solar power, the system not only ensures automatic operation but also significantly contributes to low cost operation by reducing reliance on grid electricity.

  • What is the daily treatment capacity of the Johkasou-SB unit?

    Each Mejec-Johkasou-SB unit offers a flexible daily capacity of 5–100 m³. This range is ideal for handling low-strength domestic wastewater from small to medium-sized establishments like schools, enterprises, and residential clusters. The system's design allows for flexible configuration, meaning units can be scaled or combined to meet the specific flow requirements of your project while maintaining high operational reliability.

  • How does the AAO + MBBR technology ensure compliant effluent discharge?

    The system utilizes Modern techniques by combining Anaerobic-Anoxic-Oxic (AAO) processes with Moving Bed Biofilm Reactor (MBBR) technology. This powerful combination maximizes the removal of organic pollutants and nutrients. As a result, the treated effluent remains consistently compliant with stringent discharge standards, protecting the local environment. This advanced biological process ensures the system performs reliably even under varying load conditions common in village homestays and tourist attractions.

  • Is the Mejec-Johkasou-SB easy to install and maintain?

    Absolutely. Designed as a fully integrated, ready-to-install system, the Johkasou-SB minimizes on-site construction work. Its Ground mounted installation (or buried option depending on model specifics, but emphasizing ease) simplifies the setup process. Furthermore, the system features Automatic operation, reducing the need for frequent manual intervention. This combination of High degree of integration and smart design ensures Low cost operation and straightforward maintenance over the system's lifespan.
